IF-800/W01 and IF-800/W02
Access Terminals
Terminals

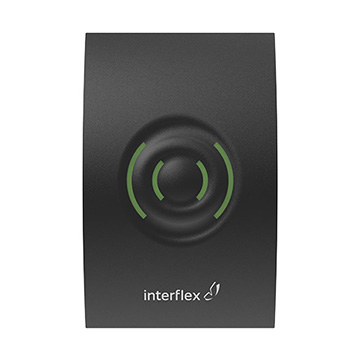

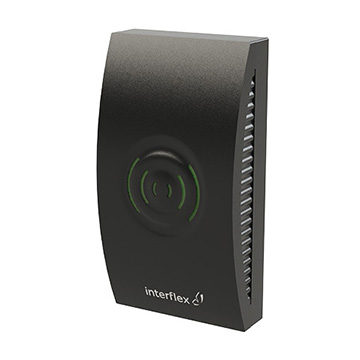

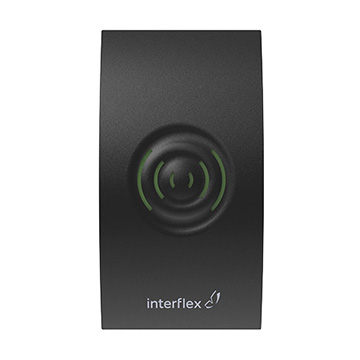

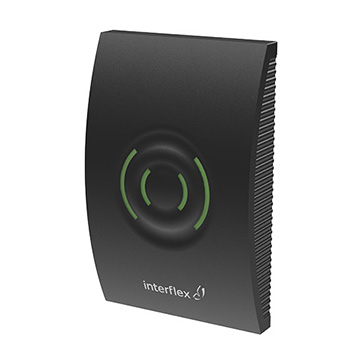

The IF-800/W01 and IF-800/W02 terminals are designed for access control and contactless person identification using RFID credentials indoors and outdoors as well as in dry and damp environments and are to be mounted on wall surfaces. In addition to granting access only for authorized persons, they also monitor door statuses and sensors installed at locks, barriers and doors. Credentials and key fobs serve as identification media. In power-saving mode, the terminals consume less than half the energy that the previous model did. Due to its compact design, the IF-800/W01 terminal is suitable for mounting to walls and door frames. The terminals are best installed in unsecured areas next to locks, barriers or doors. They can be operated either on a controller or a time recording terminal with a controller. This allows the devices to write NetworkOnCard rights for offline terminals onto RFID media. The terminals can be flexibly integrated into new or existing system environments.
Features
Advantages
• Integrated directly into the IF-6040 access control system
• Easy and quick mounting on wall surfaces
• Remote I/O controller board
• IF-800/W01 can also be mounted on door frames
• Impact-resistant housing
• Suitable for indoor and outdoor use thanks to IP65 protection class
• Encapsulated reader electronics
• Individual alarms or incident notifications
• Factory-encapsulated power supply cable with a length of 5 m
Performance features
• Can be centrally controlled via the IF-6040 host system
• Reliable reading function thanks to integrated RFID reader (LEGIC® and MIFARE®)
• Convenient programming and support of customer-specific credential formats
• Easy integration into Interflex’s software platforms
• LED display for indicating standby mode: unauthorized and authorized
• Door monitoring with alarm notification and warning buzzers
• Monitoring and actuation of blocking elements
