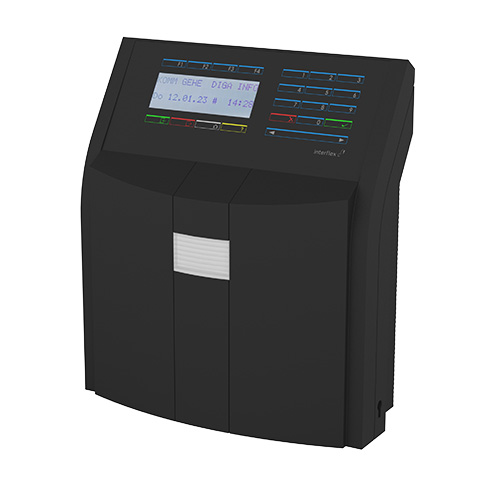

IF-4735 terminal for time recording
Terminals
The IF-4735 terminals for time recording are user-friendly readers for contactless identification of persons with RFID media such as credentials and key fobs with a transponder. The IF-4735 terminal series consists of the devices IF-4735 and IF-4735 in AT3 housing. They are operated using the IF-6040 host system and can be used for recording time, optionally also for access control as well as cost center and barcode recording. The credential number is checked in the device and forwarded to the higher-level IF-6040 system. Data exchange between IF-4735 and the IF-6040 host system is protected using encryption. The IF-4735 terminal is secured using asymmetric encryption (PKI registration and certificate generation). The four-line display and configurable function keys enable simple, intuitive operation and a clearly structured menu. Up to seven terminals can be connected using an RS485 interface. Optional connection of an I/O controller board enables control and monitoring of doors.
Features
Benefits
• Time recording such as “IN” or “OUT” or absence reasons
• Cost center recording (optional)
• Barcode scanning (optional)
• Access control (optional)
• Monitoring of sensors (barriers, cabinets, doors)
• Displays time accounts via the IF-6040 system
• Writes offline data (NetworkOnCard) to the credential
• Can be centrally controlled via the IF-6040 system, including updates
• Centrally managed updates
• Up to seven terminals can be connected (optional, additional hardware required)
• Autonomous due to its own decision-making logic and local data storage when offline
• AT3 also suited for outdoor use and harsh environments, certified with IP65 protection
• Easy and quick commissioning
• Integration in Interflex Managed Service cloud solution
• Time recording via Wifi possible under difficult structural conditions (optional)
Performance features
• Certificate-based asymmetric PKI encryption from IF-4735 to host
• Suited for mounting on surfaces, e.g., of walls or columns in dry rooms
• Reliable reading function thanks to integrated RFID reader (LEGIC®, MIFARE®)
• Convenient programming and support of customer-specific credential formats
• Can be integrated into an ethernet network
• Energy supply via Power-over-Ethernet (PoE) or an optional transformer
• 24V low-voltage can also be supplied as an alternative or to supplement.
• Power saving mode included
• 4×20-digit LCD display with numeric membrane keypad
