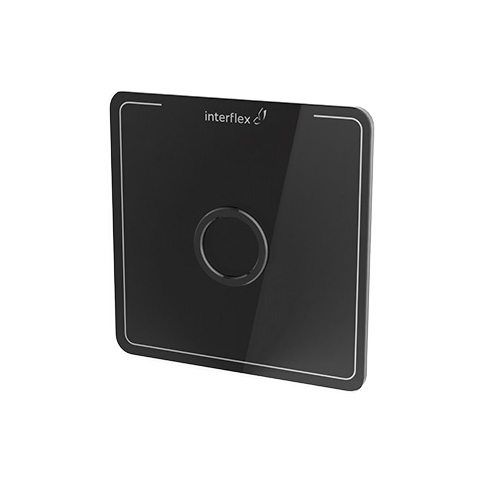

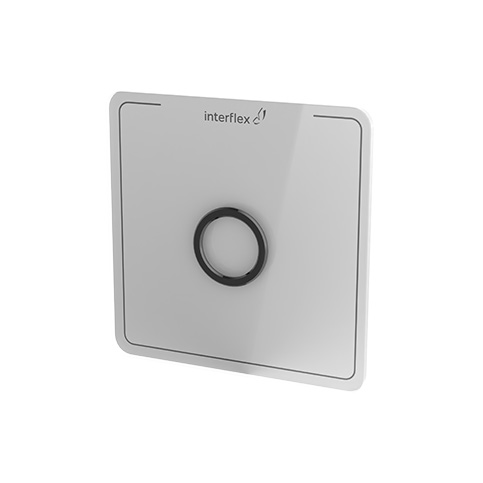

  • Half side view of the access terminal IF-800

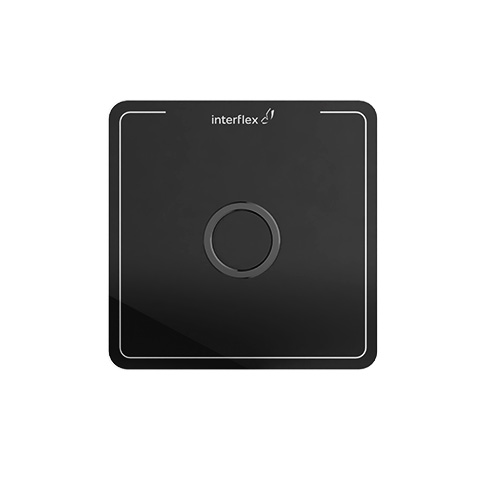

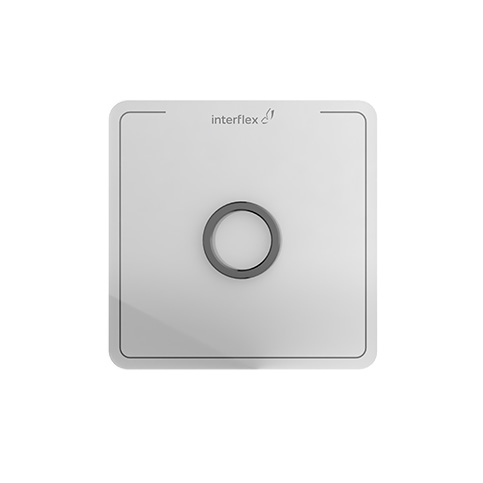

  • Front view of the access terminal IF-800
  • Half side view of the access terminal IF-800
  • Front view of the access terminal IF-800
  • Half side view of the access terminal IF-800
  • Front view of the access terminal IF-800
  • Half side view of the access terminal IF-800
  • Front view of the access terminal IF-800

Would you like to learn more about IF-800 Indoor or our product lines?

Learn more now

Access TerminalsIF-800 Indoor

The IF-800 Indoor access terminal is designed for access control and contactless personal identification using RFID cards and smartphones. With the available accessory covers, it can be used in both industrial and architecturally demanding environments, indoors and outdoors. Authorized individuals can gain access through this terminal. It can also monitor door status, sensors on barriers, gates, and doors. In addition to cards, key fobs can be used as identification media. Access via smartphone is achieved through Bluetooth® Low Energy or NFC. The terminal can be flexibly integrated into new or existing system environments. It can be operated either with a controller or a time recording terminal. NetworkOnCard authorizations for offline terminals can be written to identification media (such as cards or key fobs) using LEGIC® and MIFARE® technology.

Advantages

  • Directly integrated into the IF-6040 access control system
  • Remote I/O controller board
  • Optional access via smartphone (Bluetooth® Low Energy and NFC)
  • Individual alarm or fault notifications
  • Optional cover kits are available for brands such as Siedle, Behnke, Gira, Ritto, and Jung

Performance features

  • Centrally controllable via the IF-6040 host system
  • Reliable reading function through the integrated RFID card reader (LEGIC® and MIFARE®) and optional Bluetooth® Low Energy
  • Convenient firmware updates via the IF-6040 host system (from BG22 or XMega reader platform)
  • Easy programming and support for custom card formats
  • Reading distance up to 4 cm for RFID and NFC, and 0.4-10 m for Bluetooth® Low Energy technology (adjustable)
  • Easy integration with Interflex software platforms
  • LED indicator for operational status: unauthorized and authorized
  • Door monitoring with alarm notification and warning buzzer
  • Monitoring and control of locking elements

Technical specifications

Technical specifications
Feature
IF-800 IndoorHalf side view of the access terminal IF-800
User Interface
Display
Color SignalIncluded in the product
BuzzerIncluded in the product
Keyborad
PIN Entry
Touchscreen
Hardware
Dimensions (H x W x D) in mm70 x 70 x 42
Reader
RFID Reader (LEGIC® or MIFARE®)Included in the product
Bluetooth® Wireless Technology /
Booking with Smartphone		Included in the product
Barcode Imager
Mounting Typeflush-mounted
Ambient Temperature in °C depending on equipment variant+4 to +40
Interfaces
Digital Inputs2 (max. 4)
Relays
RS-485 InterfaceIncluded in the product
Wiegand / RS232
Security
Tamper ContactIncluded in the product
Protection Type / ClassIP20
Switching Capacity max. 30 V, 2 AIncluded in the product
Power Supply 18/24 VAC/VDCIncluded in the product
PoE Power Class 0

Other products from the same solution

  • Access Terminals: IF-900 DIN air

    Halb-Seitenansicht Zutrittsterminal IF-900-DIN-air in schwarz

  • Access Terminals: IF-900 DIN card

    Halb-Seitenansicht Zutrittsterminal IF-900-DIN-air in schwarz

  • Access Terminals: IF-900 W02 air

    Halb-Seitenansicht Terminal für Zutrittskontrolle IF-900-W02-air

  • Access Terminals: IF-900 W02 card

    Halb-Seitenansicht Terminal für Zutrittskontrolle IF-900-W02-card

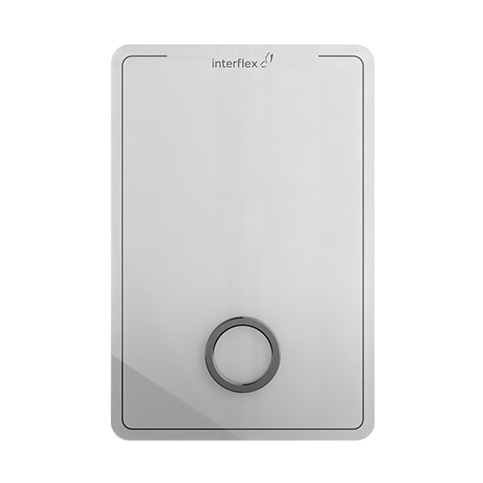

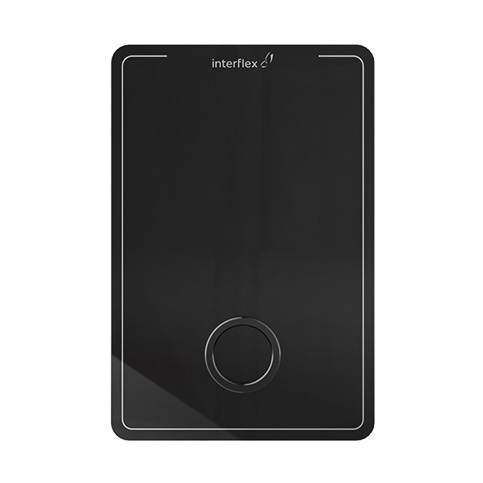

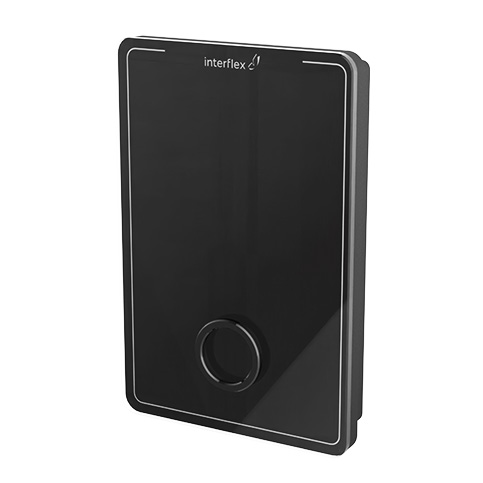

  • Access Terminals: IF-800 Outdoor

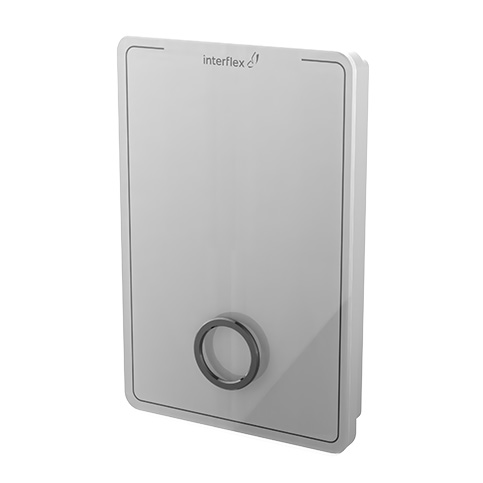

    Half side view of the access terminal IF-800 Outdoor

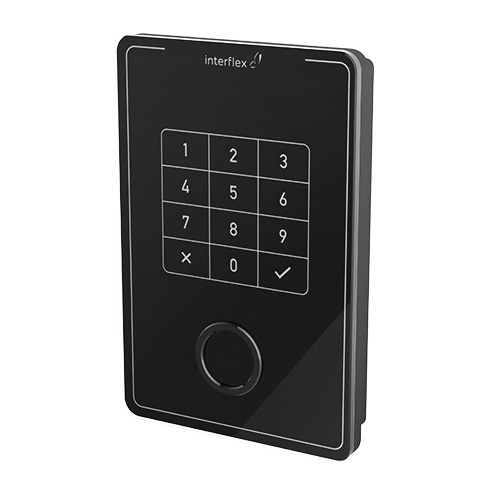

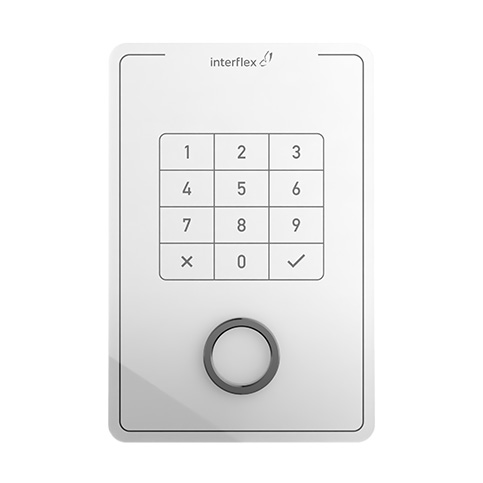

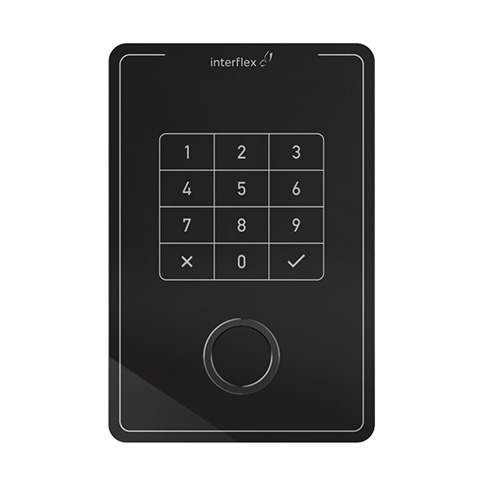

  • Access Terminals: IF-801 Outdoor PIN
