Would you like to learn more about IF-815 or our product lines?
Learn more nowTime Recording TerminalIF-815

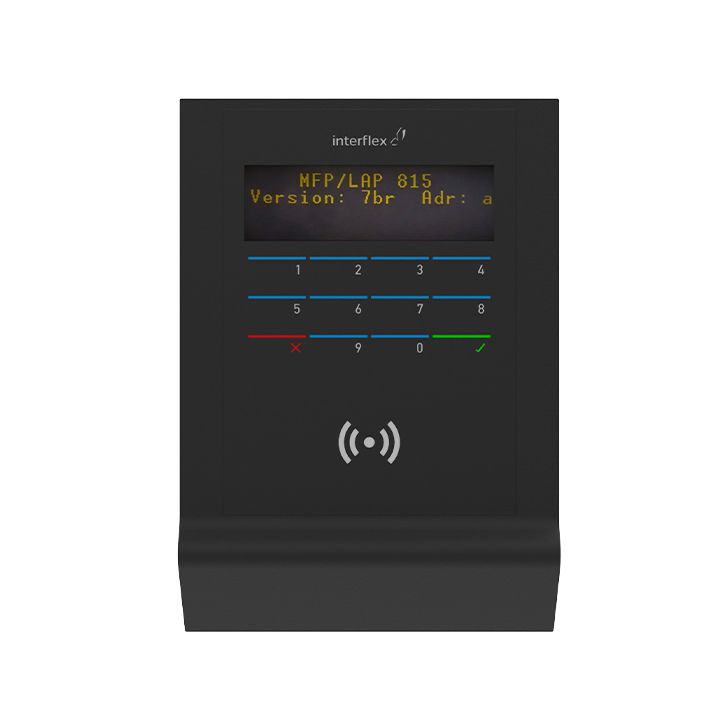

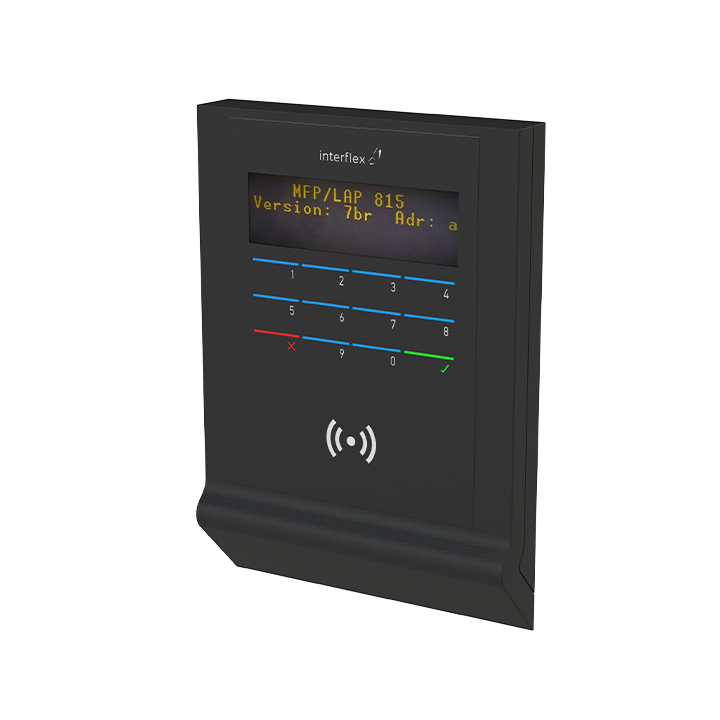

The IF-815 time recording terminal allows for easy and intuitive recording of employee time data using RFID media. The IF-815 terminal is connected to a controller or a time recording terminal with an integrated controller and operates with the IF-6040 host system. With the IF-815, you can record personal time data such as "arriving" and "leaving," reasons for absence, and cost centers, as well as display work time accounts. Employees can identify themselves using RFID media like badges and key fobs to log their time. Optionally, it is also possible to control and monitor locks, doors, and barriers with alarm notifications and warning buzzers.
The ergonomic design of the control and information elements supports intuitive user guidance. For higher security requirements, personal PINs can be entered via the keypad, and individual alarm or fault notifications can be issued. Additionally, the terminal can be connected to other devices via an additional RS232 interface. The IF-815 can operate in power-saving mode. Due to the use of impact-resistant materials, the terminal can be installed both indoors and outdoors.
Advantages
- Time recording for actions like "arriving," "leaving," or reasons for absence
- Cost center recording (optional)
- Barcode recording (optional)
- Access control (optional)
- Monitoring of sensors (locks, barriers, doors)
- Displays time accounts via the IF-6040 host system
- Writes offline data (NetworkOnCard) to the badge
- Centrally controllable via the IF-6040 system, including updates
- 4×20 character LCD display with numeric membrane keypad
- Reliable reading function through integrated RFID badge reader (LEGIC®, MIFARE®)
- Easy and quick setup
- Integration into the Interflex Managed Services cloud solution
Technical specifications
| Feature | |
|---|---|
| User Interface | |
| Display | Included in the product |
| Color Signal | Included in the product |
| Buzzer | Included in the product |
| Keyborad | Included in the product |
| PIN Entry | Included in the product |
| Touchscreen | |
| Hardware | |
| Dimensions (H x W x D) in mm | 157 x 114 x 35 |
| Reader | |
| RFID Reader (LEGIC® or MIFARE®) | Included in the product |
| Bluetooth® Wireless Technology / Booking with Smartphone | Included in the product |
| Barcode Imager | |
| Mounting Type | On plaster |
| Ambient Temperature in °C depending on equipment variant | –25 to +55 |
| Interfaces | |
| Digital Inputs | 2 (max. 4) |
| Relays | 1 (max. 2) |
| RS-485 Interface | Included in the product |
| Wiegand / RS232 | |
| Security | |
| Tamper Contact | Included in the product |
| Protection Type / Class | IP43 |
| Switching Capacity max. 30 V, 2 A | Included in the product |
| Power Supply 18/24 VAC/VDC | Included in the product |
| PoE Power Class 0 | |
