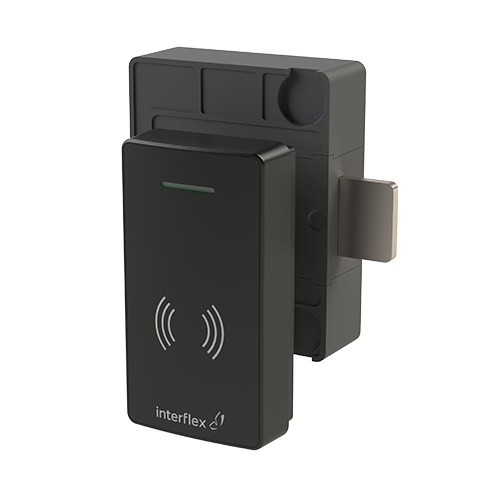

IF-261 Electronic Cabinet Lock Card
Cabinet Lock
The IF-261 Electronic Cabinet Lock offers maximum security for storage cabinets and lockers. The exhausting management of your cabinets and lockers with conventional keys is no longer necessary with the IF-261. The Cabinet Lock is easy to install and can also be used on wooden and metal lockers thanks to the versatile adapter plates. Current security standards can thus be implemented cost-effectively for a wide range of applications – with minimal maintenance thanks to batteries with a very long service life. The IF-261 is part of the new Opendor product line.
Features
Advantages
• Integration into IF-6040 access control system using NetworkOnCard
• Quick and easy installation, no cables required
• Easy to retrofit to existing cabinet and locker systems
• Protection of investment, since the upgrade from Cabinet Lock card to Cabinet Lock air possible at any time
• LEDs indicate the battery status
• Emergency power supply via Micro-USB
• Good RFID read range even on metal cabinets
• Bluetooth® Low Energy
• Convenient one-hand operation
• Rugged housing, resistant to disinfectants
Performance features
• Contactless identification via credentials
• Security management with secure element
• Reliable reading function thanks to integrated RFID reader (MIFARE® and LEGIC®) and Bluetooth® Low Energy
• Very long standby battery life of up to 12 years or up to 80,000 actuations
• Booking response via LEDs and buzzers while the credential is being read
• Automatic wake-up function (credential in the read range of the Cabinet Lock)
• Time-controlled access checks to allow access only during specified time intervals. Several intervals are possible, public holidays can be taken into account.
• Automatic switchover to daylight-saving/standard time
• Audible notification of low battery
• Low risk and low costs when a credential is lost: Black list for lost credentials prevents access with such credentials.
Special features
Users can easily integrate the Cabinet Lock into the IF-6040 access control system. It is available both as a NetworkOnCard version and as a wireless version. There are 2 versions available:
The Cabinet Lock card reads the access authorizations stored on RFID credentials using the NetworkOnCard technology. The Cabinet Lock air reads the digital key on credentials via RFID/NFC or on the smartphone via NFC or Bluetooth technology and Interflex’s App Key (Android, iOS). It evaluates the stored access rights online in real time from the IF-6040 access control system via the IF-4041 gateway or offline in the Cabinet Lock.
Opendor product line
The Opendor product line is ideal for complying with current security standards for a wide range of applications in a cost-effective, uncomplicated and wireless manner. In addition to the IF-261 Cabinet Lock, it also offers the IF-241 Door Fitting, IF-271 Door Handle and the IF-281 Lock Cylinder. All products are available both in card and air versions. The IF-4041 gateway is also required for the air version in order to wirelessly integrate the locking system into the IF-6040 access control system.
